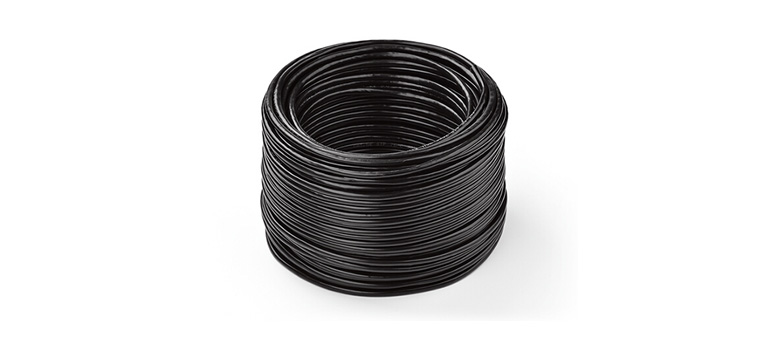

High Quality Cat6 U/UTP Unshielded Network Cable UMNW1101

Product Info

Product Description

Umacable High Quality Cat6 U/UTP Unshielded Network Cable is perfect for creating custom length horizontal network cable runs. This cable offers an exceptional value for jobs that require standards compliance at a cost-effective price and meets all of the ANSI/TIA-568-C.2 specifications. It also offers other features that make it easier to use, save on installation time and expense, and ensure product quality during the installation. This cable features markings in foot or meter, which marks the exact amount of cable remaining in the box, and a wide opening for the pull out design, which reduces tension on the wire as it is pulled during installation. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.

Key Features

• High Quality CAT6 U/UTP Unshielded Network Cable
• Meets ANSI/TIA-568-C.2 and ISO/IEC 11801 Specification
• Tested to 500 MHz and support 1000 Base-T Gigabit Ethernet
• Foot or Meter marked to show the amount of cable left in the box

Product Specifications

• Item No.:	UMNW1101
• Available Length:	100m, 305m
• Available Gauge:	23AWG Solid
•Conductor:	Bare Copper or Copper Clad Aluminum
•Color:	Customized
• Jacket:	PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing:	Easy Pull Box
• Approval:	RoHS Compliant
• Vendor:	Umacable

Electrical Characteristics

• Impedance – 100±15(Ohms) @ 1-250MHz
• DC Resistance Unbalance (%) – Max 2.5
• DC Resistance 20℃ – 8.4 (Ohms/100m)
• Pair-to-Ground Capacitance Unbalance – 330(pF/100M)
• Insulation Resistance – >5000 MΩ*Km

Physical Characteristics:

• Dielectric Strength – DC 2500V 2S
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 23AWG Solid Bare Copper
• Insulation – HDPE
• Color – White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 6.5±0.2mm

Nominal Transmission Characteristics:

Frequency	RL(min)	IL(min)	DOP(max)	Delay Skew (max)	NEXT(min)	PSNEXT(min)	ACR-F(min)	PSACR-F(min)
(Mhz)	(dB)	(dB/100m)	(ns/100m)	(ns/100m)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	20.0	2	570	45	74	72	67.8	64.8
4	23.0	3.8	552	45	65	63	55.7	52.7
10	25.0	6.0	545	45	59	57	47.8	44.8
16	25.0	7.6	543	45	56	54	43.7	40.7
20	25.0	8.5	542	45	55	53	41.7	38.7
31.25	23.6	10.7	540	45	52	50	37.9	34.9
62.5	21.5	15.4	538	45	47	45	31.8	28.8
100	20.1	19.8	537	45	44.3	42.3	27.8	24.8
200	18.0	29.0	536	45	39.7	37.7	21.7	18.7
250	17.3	32.8	535	45	38	36	19.8	16.8
