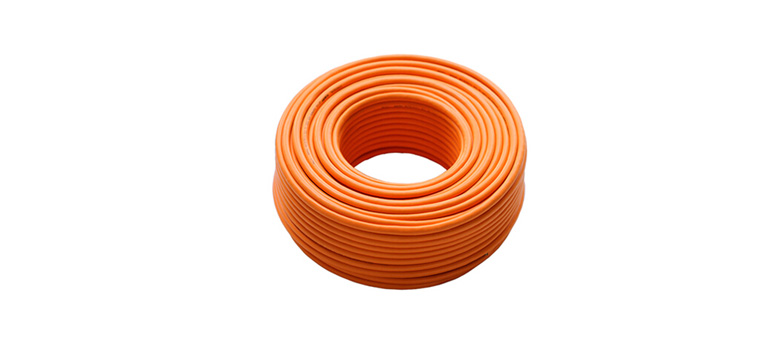

High Quality Cat6A S/FTP (PIMF) Double Fully Shielded Network Cable UMNW1203

Product Info

Product Description

Umacable High Quality Cat6A S/FTP (PIMF) Double Fully Shielded Network Cable is an ideal choice for wiring your home or office for high-speed network. S/FTP shielding can prevent electromagnetic interference (EMI) and reduce crosstalk noise. This cable meets all of the ANSI/TIA-568-C.2 specifications. Future-proof your network for 10-Gigabit Ethernet (backwards compatible with any existing Fast Ethernet and Gigabit Ethernet). This cable features markings in foot or meter, which marks the exact amount of cable remaining in the box, and a wide opening for the pull out design, which reduces tension on the wire as it is pulled during installation. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.

Key Features

• High Quality CAT6A S/FTP (PIMF) Double Fully Shielded Network Cable
• Pair in Metal Foil (PIMF) shielded reduces ingress of EMI/RFI interference to ensure cable performance at high frequency levels
• Meets and Exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 Specification
• Tested to 500 MHz and support 10 Gigabit Ethernet
• Foot or Meter marked to show the amount of cable left in the box

Product Specifications

• Item No.:	UMNW1203
• Available Length:	100m, 305m
• Available Gauge:	23AWG Solid
•Conductor:	Bare Copper or Copper Clad Aluminum
•Color:	Customized
• Jacket:	PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing:	Easy Pull Box
• Approval:	RoHS Compliant
• Vendor:	Umacable

Electrical Characteristics

• Impedance –100±15(Ohms) @ 1-1000MHz, 100±22(Ohms) @ 100-200MHz, 100±32(Ohms) @ 200-500MHz
• DC Resistance Unbalance (%) – Max 2.5
• DC Resistance 20℃ – 8.4 (Ohms/100m)
• Pair-to-Ground Capacitance Unbalance – 330(pF/100M)
• Insulation Resistance – >5000 MΩ*Km

Physical Characteristics:

• Dielectric Strength – DC 2500V 2S
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 23AWG Solid Bare Copper
• Insulation – HDPE
• Color – White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
• Braid – 16/5/0.12 Aluminum Magnesium
• Shield – Aluminum Foil, 100% Coverage
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 8.3±0.2mm

Nominal Transmission Characteristics:

Frequency	RL(min)	IL(min)	DOP(max)	Delay Skew (max)	NEXT(min)	PSNEXT(min)	ACR-F(min)	PSACR-F(min)
(Mhz)	(dB)	(dB/100m)	(ns/100m)	(ns/100m)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	20.0	2.1	570	45	74.3	72.3	67.8	64.8
4	23.0	3.8	552	45	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45	59.3	57.3	47.8	44.8
16	25.0	7.6	543	45	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45	54.8	52.8	41.8	38.8
31.25	25.0	10.7	540.4	45	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45	33.8	31.8	13.8	10.8
