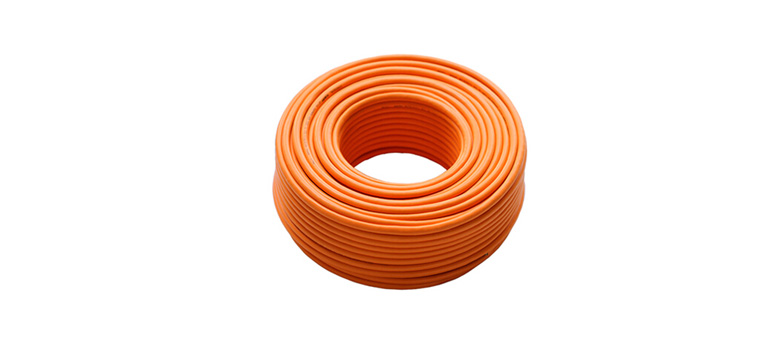

High Quality Cat6A U/UTP Unshielded Network Cable UMNW1201

Product Info

Product Description

Umacable High Quality Cat6A U/UTP Unshielded Network Cable is a high performance data communication cable suitable for 10Gigabit high speed applications. It has excellent attenuation and crosstalk characteristics and exceeds TIA/EIA-568-C.2 specification. It also offers other features that make it easier to use, save on installation time and expense, and ensure product quality during the installation. This cable features markings in foot or meter, which marks the exact amount of cable remaining in the box, and a wide opening for the pull out design, which reduces tension on the wire as it is pulled during installation. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.

Key Features

• High Quality CAT6A U/UTP Unshielded Network Cable
• Meets and Exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 Specification
• Tested to 500 MHz and support 10 Gigabit Ethernet
• Foot or Meter marked to show the amount of cable left in the box

Product Specifications

• Item No.:	UMNW1201
• Available Length:	100m, 305m
• Available Gauge:	23AWG Solid
•Conductor:	Bare Copper or Copper Clad Aluminum
•Color:	Customized
• Jacket:	PVC, LSZH, LDPE, CMX, CM, CMR, CMP
• Packing:	Easy Pull Box
• Approval:	RoHS Compliant
• Vendor:	Umacable

Electrical Characteristics

• Impedance – 100±15(Ohms) @ 1-250MHz
• DC Resistance Unbalance (%) – Max 2.5
• DC Resistance 20℃ – 8.4 (Ohms/100m)
• Pair-to-Ground Capacitance Unbalance – 330(pF/100M)
• Insulation Resistance – >5000 MΩ*Km

Physical Characteristics:

• Dielectric Strength – DC 2500V 2S
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductors (4 pairs)
• Conductor Type – 23AWG Solid Bare Copper
• Insulation – HDPE
• Color – White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown
Overall Cable
• Jacket – PVC, LSZH, LDPE, CMX, CM, CMR, CMP
O.D. – 7.5±0.2mm

Nominal Transmission Characteristics:

Frequency	RL(min)	IL(min)	DOP(max)	Delay Skew (max)	NEXT(min)	PSNEXT(min)	ACR-F(min)	PSACR-F(min)
(Mhz)	(dB)	(dB/100m)	(ns/100m)	(ns/100m)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	20.0	2.1	570	45	74.3	72.3	67.8	64.8
4	23.0	3.8	552	45	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45	59.3	57.3	47.8	44.8
16	25.0	7.6	543	45	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45	54.8	52.8	41.8	38.8
31.25	25.0	10.7	540.4	45	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45	33.8	31.8	13.8	10.8
