Project Description

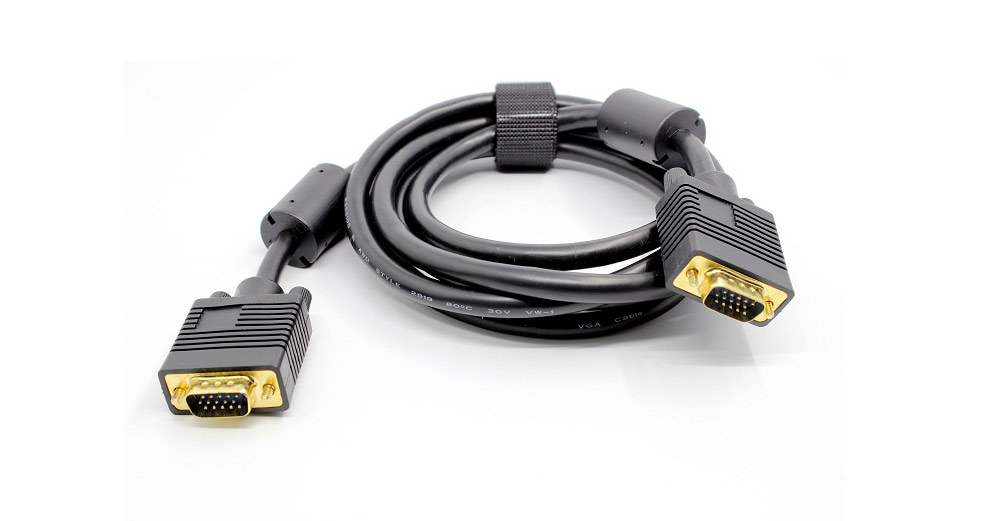

Umacable High Quality VGA Cable is perfect for home theater or desktop audio video applications. Connects a VGA (Video Graphic Array) equipped laptop or desktop to an HDTV, Monitor, Projector, Flat Panel Display, Digital CRT Display or other devices with 15 Pin VGA input. It transmits video signals from your computer to a monitor for video streaming or gaming. Connects and configures your monitor for an Extended Desktop or Mirrored Display. Supports video resolutions up to 2048×1536 (QXGA). High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-K gold plated connectors ensure superior signal transfer. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.
Key Features
• HDB15 VGA video cable
• Connects a standard VGA device to an HDTV, monitor, projector or other standard VGA device
• Support video resolutions up to 2048×1536 (QXGA), including 1920×1200 (WUXGA), 1600×1200 (UXGA), 1680×1050 (WSXGA+), 1400×1050 (SXGA+), 1280×800 (WXGA), 1024×768 (XGA), 800×600 (SVGA), 640×480 (VGA)
• The screw design makes sure a secure connection
Product Specifications
| • Item No.: | UMVG1001 |
| • Available Length: | 0.5m 1m 1.5m 1.8m 3m 5m 7.5m 10m 15m 20m 30m 50m |
| • Available Gauge: | 30AWG(1-5m) 28AWG( 7.5-20m) 26AWG (30m) 24AWG(50m) |
| • Color: | Black or Customized |
| • Nylon mesh: | Customized |
| • Ferrite Core: | Customized |
| • Connector: | Gold or Nickel plated |
| • Packing: | PE bag, Zip bag, Box, Hang card, Blister |
| • Approval: | RoHS Compliant |
| • Vendor : | Umacable |
Electrical Characteristics
• Maximum resolution supported – 2048×1536
• Nominal impedance – 75±5Ω
• Nominal capacitance – 28pF/m
• Conductor resistance – 376.96Ω/km
• Insulation resistance – 10MΩ/km at 20℃ DC-500V
• Dielectric strength – AC 500V/1 minute
Physical Characteristics:
• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE Compliant
Conductor 1 (3 conductors)
• Conductor Type – 30AWG Bare Copper
• Insulation – Foamed PE SKIN
• Drain Wire – 30AWG Bare Copper
• Shield – Aluminum Foil, 100% Coverage
Conductor 2 (9 conductors)
• Conductor Type – 30AWG Bare Copper
• Insulation – HDPE
Overall Cable
• Drain Wire – 30AWG Bare Copper
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/5/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 6.0±0.2mm
Connectors
• Connector Type – HD 15 VGA Male
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – 1 µm Gold
