Project Description
Umacable High Quality USB 2.0 Type C (USB-C) Male to Type A (USB-A) Male Cable is perfect for your cellphone, tablet, external hard drive and other USB peripherals equipped with USB-C port. This cable provides a transfer rate up to 480 Mbps depending upon the peripheral’s USB version, and easily attaches to any USB device. The USB-C connector has a symmetrical design which is identical on both sides, it does not matter if you plug it in upside-down or right-side-up. This cable can deliver up to 5 Volts and 3 Amp from a computer to any connected device. Foil and braid shielding provide complete immunity to EMI/RFI interference, and the twisted pair construction helps reduce crosstalk thus ensuring high speed, error-free data transfer. This fully-functional, high quality cable is tested to perform at industry standards and is backed by Umacable lifetime warranty.
Key Features
• High Speed USB 2.0 Type C (USB-C) Male to Type A (USB-A) Male Cable
• Reversible USB-C Connector allows for plugging in any way
• Support up to 3 Amps of charging power for mobile devices and all USB-C compatible devices
• Backward compliant with full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
• Flexible PVC jacket, Foil and braid shielding, and the twisted pair construction make a better performance
Product Specifications
| • Item No.: | UMUB3002 |
| • Available Length: | 0.5m 1m 1.5m 1.8m 3m |
| • Available Gauge: | 28/28AWG |
| • Color: | Black or Customized |
| • Nylon mesh: | Customized |
| • Ferrite Core: | Customized |
| • Connector: | Gold or Nickel plated |
| • Packing: | PE bag, Zip bag, Box, Hang card, Blister |
| • Approval: | RoHS Compliant |
| • Vendor : | Umacable |
Electrical Characteristics
• Nominal Velocity of Propagation – 480Mbps
• DC Resistance – 300V
• Dielectric Strength – AC 500V/minute
• Insulation Resistance – 10MΩ
Physical Characteristics:
• Voltage Rating – 30V
• Maximum Bend Radius – 90mm
• Temperature Rating – 80℃
• Operating Temperature Range – -20℃- 80℃
• Storage Temperature Range – -25℃- 85℃
• Approvals – RoHS, CE, UL Compliant
Conductor 1 (1 pair)
• Conductor Type – 28AWG Bare Copper
• Insulation – Foamed PE SKIN
• Shield – Aluminum Foil, 100% Coverage
Conductor 2 (2 conductors)
• Conductor Type – 28AWG Bare Copper
• Insulation – HDPE
Overall Cable
• Foil Shield – Aluminum Foil, 100% Coverage
• Braided Shield – 16/3/0.12, Al/Mg
• Jacket – PVC, Black, O.D.: 3.8±0.2mm
Connector 1

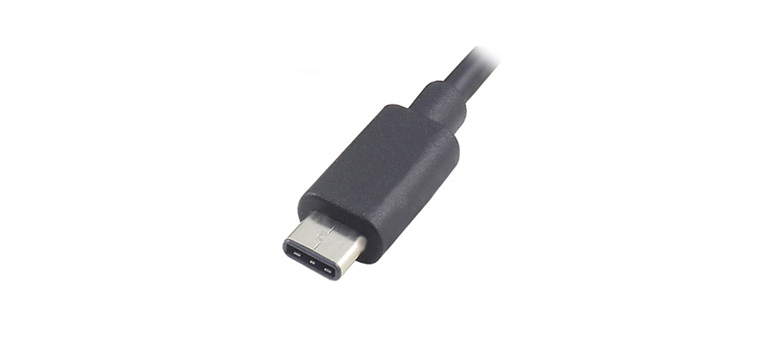

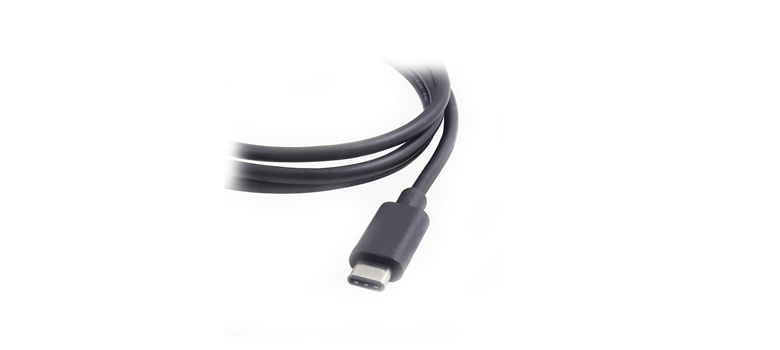

• Connector Type – USB 2.0 Type C Male
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Connector 2

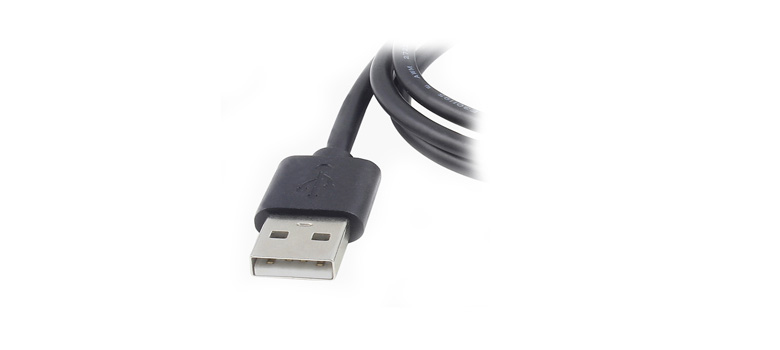

• Connector Type – USB 2.0 Type A Male
• Pin Construction – Phosphor Copper
• Injection – 45P PVC
• Plating – Nickel
Product Support
• Download the Technical specifications
